Solid Hot Melt Glue Dispensing Robot (Desktop)

• Model No: WPM-551

• Viscosity Hot Melt Dispensing Robot, Glue Dispenser Robot, Automatic Glue Dispenser Robot

  Model WPM-551

  Working range(mm) 500/500/100

  Programmatic ally Import teaching programming or graphics

  Can move the graph track Point, line, arc, circle, cure, multiple lines, spiral, ellipse

  Control System Single-chip + hand box control

  Dispensing head PUR dispensing head/PUH dispensing head

  Dispensing cylinder 30ml or 50ml

  Minimum discharge 0.01ml

  The glue frequency 5Time/SEC

  Load 10KG

  Axial dynamic speed X/Y/Z(mm/sec) 0-600mm/sec

  Repeatability(mm) ±0.02mm

  Program record mode At least 100,5000 points each

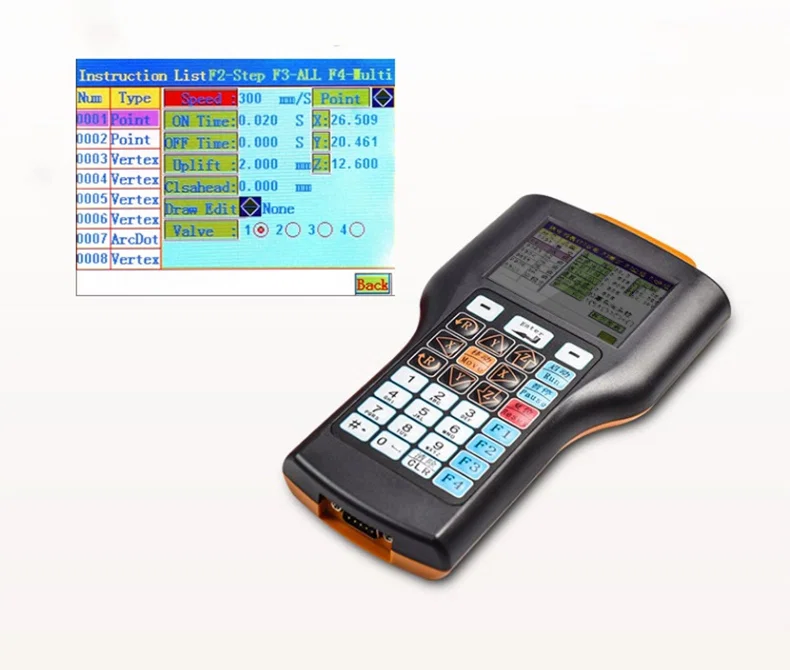

  Display mode LCD Teaching box

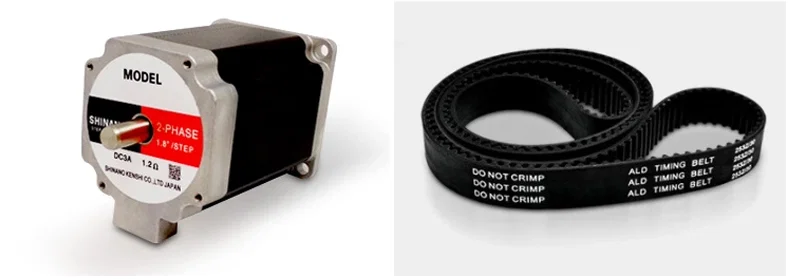

  Motor system stepper motor

  Guide Taiwan upper silver linear guide

  Wire rod Taiwan TBI silver bar

  Belt&am
