Sheathed Cable Stripping and Cutting Machine 25 sq.mm WPM-09HT2

Name: Sheathed Cable Stripping and Cutting Machine 25 sq.mm WPM...
Brand: Twist Tie Machines & Packaging Solutions
SKU: WPM-09HT2
Availability: InStock
Rating: 5 (1 reviews)

Model No: WPM-09HT2
Sheathed cable cutting and stripping machine， Round Wire Stripping Machine, Cutting And Stripping Machine, Cable Strip Product
Cutting Length: 0.1mm – 100m
Cutting Tolerance: ≤0.002×L (L = Cutting Length)
Sheath Stripping Length: Head 0.1 – 250mm, Tail 0.1-150mm
Cutting Cross-sectional Area of Wire Core: 0.1 – 25mm2 AWG（8#-32#）
Inquiry now

Detailed description

Sheathed cable cutting and stripping machine， Round Wire Stripping Machine, Cutting And Stripping Machine, Cable Strip Product, Sheathed cable cutting and stripping machine WPM-09HT2

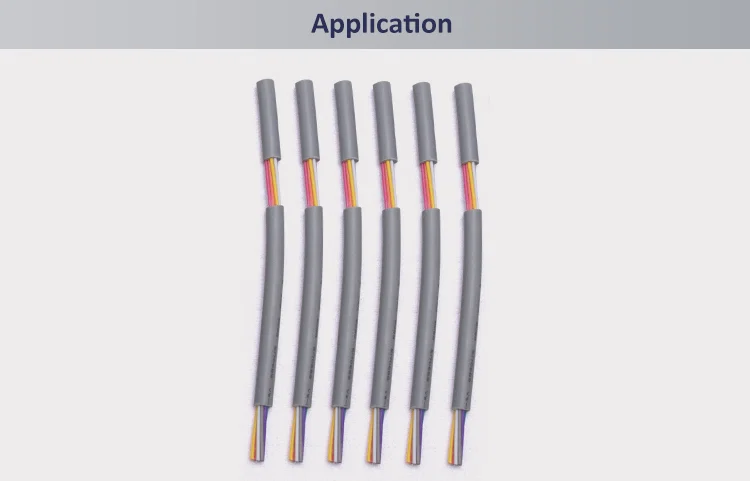

Scope of Application
WPM-09HT2 Full-automatic Computer Wire Stripping Machine made by our factory is suitable for cutting, head-stripping, tail-stripping, and middle-stripping of the single–strand, multi-strand, and sheath wire. The maximum processing cross-sectional area is 0.1-25mm 2; the maximum cutting length is 100m, head-stripping 250mm, and tail-stripping150mm. WPM-09HT2 is suitable for stripping sheath wire, especially for sheath wire of long Wire Head and Wire Tail.
Weight: 42KG
Overall Dimensions: 390mm×350mm×255mm
Power: 200 – 450W
Mode of Display: LCD Liquid Crystal Display Screen in English and Chinese
Cutting Length: 0.1mm – 100m
Cutting Tolerance: ≤0.002×L (L = Cutting Length)
Sheath Stripping Length: Head 0.1 – 250mm, Tail 0.1-150mm
Cutting Cross-sectional Area of Wire Core: 0.1 – 25mm2 AWG（8#-32#）
Maximum Diameter of Conduit Pipe: ￠11
Middle-stripping: 13 places of stripping
Knife Material: High-quality Tungsten Steel
Stripping Speed: 4000 – 10000 pcs/h
Mode of Driving: Four-wheeled Drive (Silent hybrid stepping motor, each step 0.1mm forward)
Adjusting Speed: 0 Slowest, 9 Fastest

Sheathed cable cutting and stripping machine，Round Wire Stripping Machine, Cutting And Stripping Machine, Cable Strip Product
