Pneumatic terminal crimping machine, Pneumatic Wire pressing pliers WPM-5ND, Wire Crimp Tool, Electrical Wire Crimper, Terminal Crimper

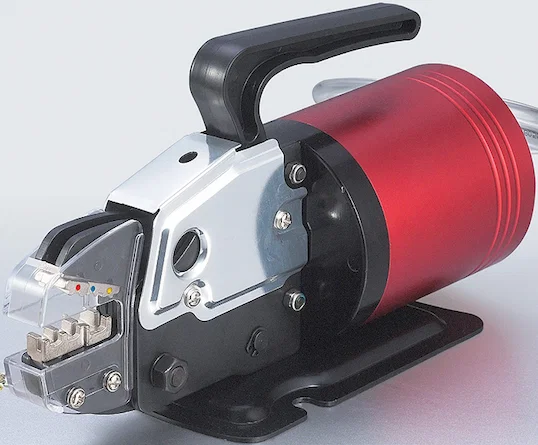

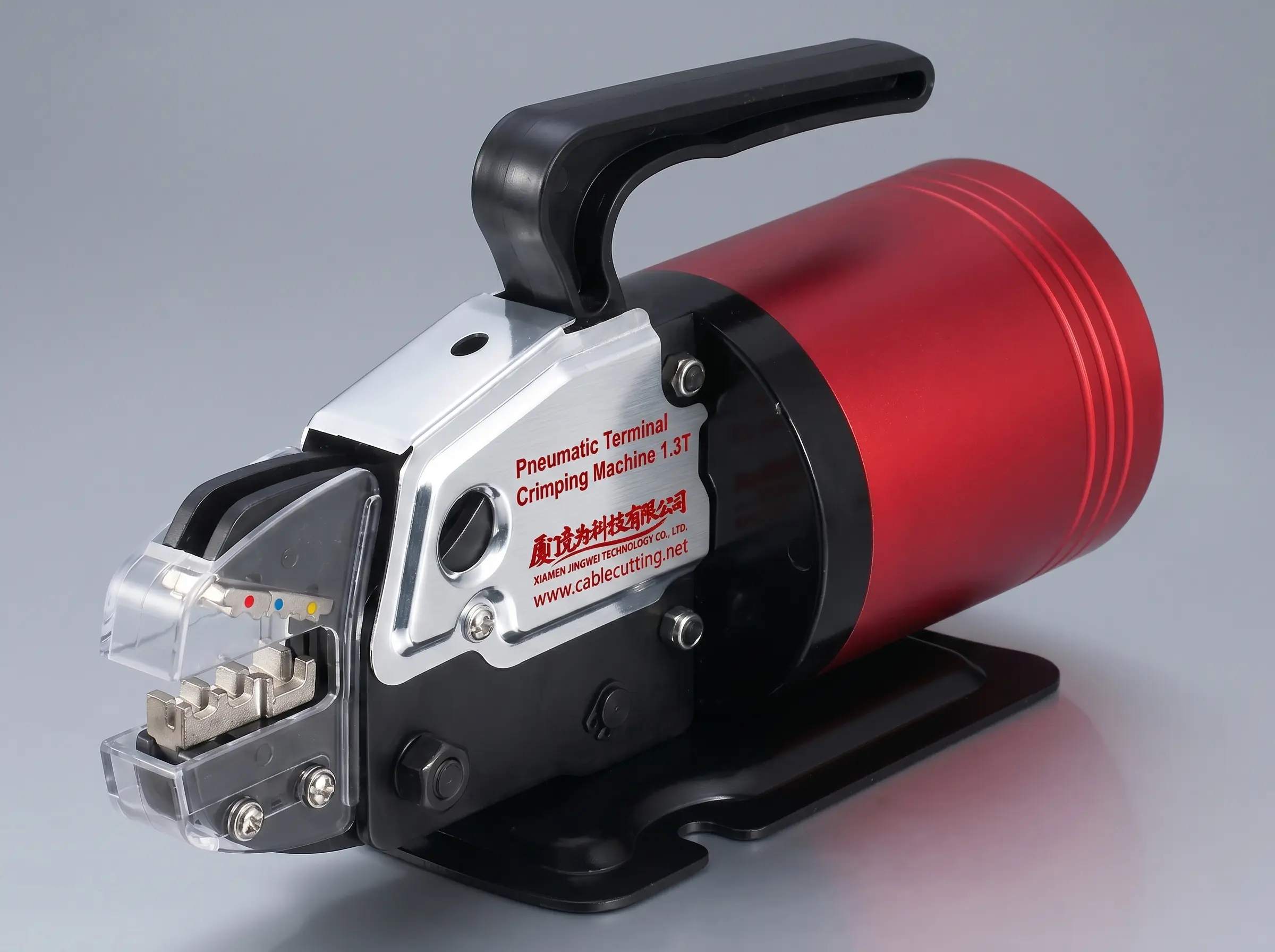

WPM-5ND Pneumatic terminal crimping machine
This product adoption double action standard cylinder drives and have in pressing to connect force and pressing to connect velocity high-efficiency and high-quality merit. Apply to very much amid, the terminal of the amount of significant amount press a connecting use. , and our company presses the fixture of connecting and have good compatibility with the manufacturing handwork. Having the terminal of having various styles to press to connect fixtures can be provided as a purchase
HC-01 Pneumatic terminal crimping machine for crimping many kinds of terminals (just change the dies)
Broad application range
High precision, Economical & user-friendly
Extremely low maintenance
Ultra-quick changeover, setup and cycle times, micro-adjust
Model |
WPM-5ND |
Crimping range |
Non-insulated terminals ≦ 16m㎡ Pre-insulated terminals ≦ 6 m㎡ Needle tube terminals ≦ 35 m㎡ |
Press capacity |
1.3T |
Barometric range |
0.4-1Mpa |
Measurement |
260*120*140mm |
Weight(kg) |
4kg |
