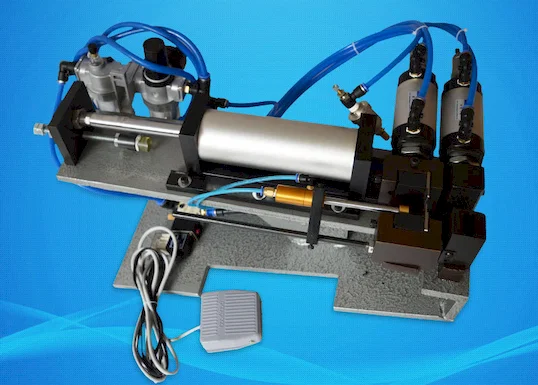

Pneumatic Cable Stripping Machine WPM-315

Name: Pneumatic Cable Stripping Machine WPM-315
Brand: Twist Tie Machines & Packaging Solutions
SKU: WPM-315
Availability: InStock
Rating: 5 (1 reviews)

Model No: WPM-315
Cable stripping machines, cable jacket sheath strippers, and cable strippers are all available for use with short cables that have small diameters. These machines can handle a variety of cables including AC/DC power wires, computer cables, electronic cables, and multi-core cables.
Stripping length 150mm
Wire Dia. 0-20mm
Air Pressure 0.5-0.7mpa
Voltage 220V/50HZ 110V//60HZ
Force 84-196KG
Weight 65KG
Size L1100*W550*H450mm
Inquiry now

Detailed description

Pneumatic Cable Stripping Machine (WPM-315)
Cable Stripping Machine, Cable Jacket Sheath Stripper, Cable Stripper
Function
1. Bevel design, according to somatology.
2. Dual-driving cylinder, no spring breakage.
3. Self-feeding oil and supply. A timely oil supply to the cylinder can decrease the abrasion of the interior cylinder and lengthen life.
4. Special sliding holder, balance stroke, and high peeling precision. Electric control, easy operation.
5. Adjustable structure, and wire thickness.
6. Suitable for short cables with small diameters, such as AC/DC, power wire, computer cable, electronic cable, and multi-core cable.
Model WPM-315
Stripping length 150mm
Wire Dia. 0-20mm
Air Pressure 0.5-0.7mpa
Voltage 220V/50HZ 110V//60HZ
Force 84-196KG
Weight 65KG
Size L1100*W550*H450mm

Cable Stripping Machine, Cable Jacket Sheath Stripper, Cable Stripper

Cable stripping machine, Cable Stripping Machine, Cable Jacket Sheath Stripper, Cable Stripper

Model	WPM-305	WPM-310	WPM-315	WPM-330	WPM-416
Wire Size	1 - 5mm	1 - 10mm	1 - 15mm	1 - 20mm	1 - 30mm
Stripping Length	3 - 50mm	3 - 100mm	3 - 150mm	3 - 330mm	3 - 150mm
Cylinder Dia.	Ø40	Ø50	Ø60	Ø60	Ø80
Force	31-37Kg	49-115Kg	84-196Kg	84-196Kg	165-300Kg
Power Supply	220V	220V	220V	220V	220V
Dimension	40×30×27cm	48×33×28cm	60×42×36cm	110×55×45cm	80×62×55cm
Net. Weight	20Kg	25Kg	35Kg	65Kg	50Kg
Packing	Packed in Wood Case (Standard Export Packing)
