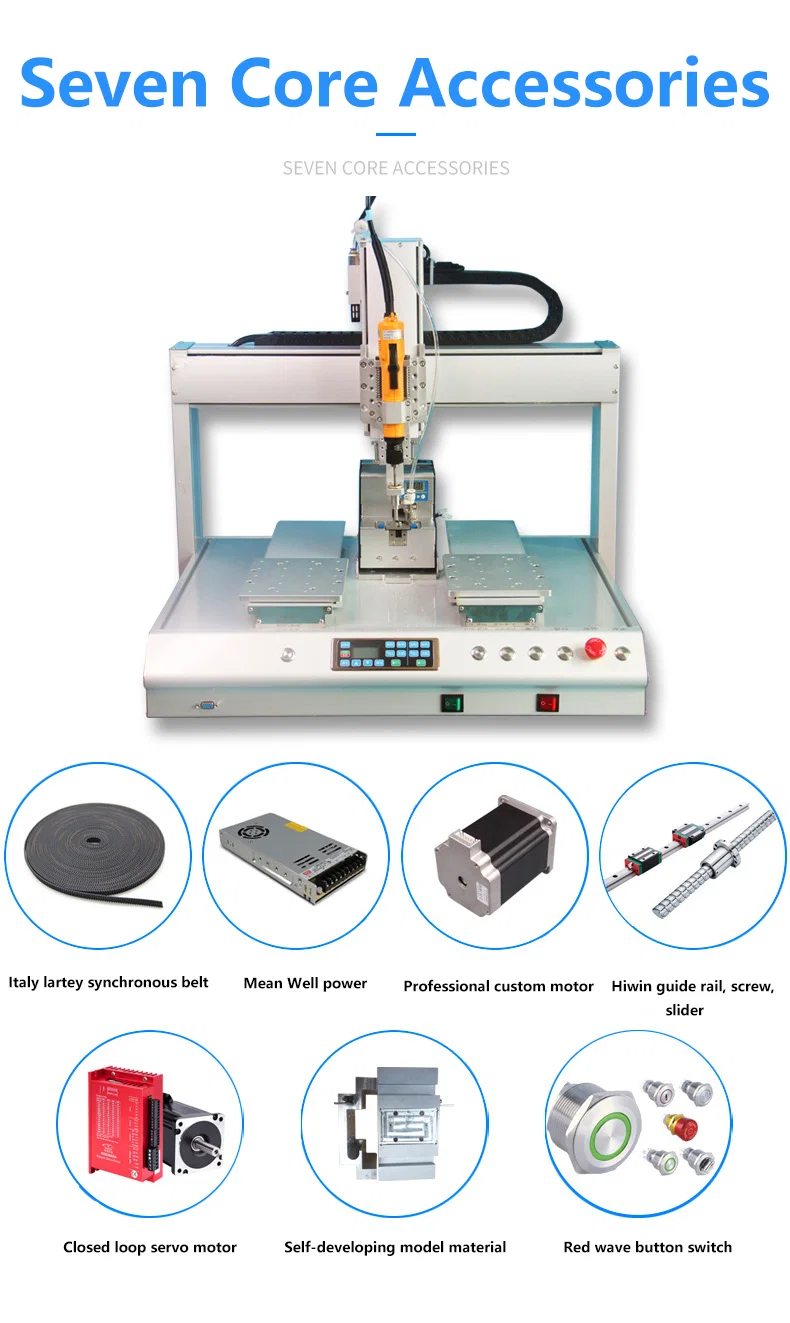

Desktop Locking Automatic Screwdriving Machine

Model No: WPM-SL5331
Desktop Locking Auto Fastening Auto-Screwdriving Machine Automatic Fixing Screw Robot, Screw Fixing Machine, Screwdriver Robot, Screw Locking Assembly Robot
An automatic lock screw machine is automated equipment that can replace manual screw locking.
As the production cost of enterprises is getting higher and higher, labor costs are rising, and automatic screw machines will replace most of the screw locking stations, which are simple to operate, convenient to use, and efficient.
Inquiry now

Detailed description

Desktop Locking Auto Fastening Auto-Screwdriving Machine Automatic Fixing Screw Robot, Screw Fixing Machine, Screwdriver Robot, Screw Locking Assembly Robot
An automatic lock screw machine is automated equipment that can replace manual screw locking.
As the production cost of enterprises is getting higher and higher, labor costs are rising, and automatic screw machines will replace most of the screw locking stations, which are simple to operate, convenient to use, and efficient.

Model	WPM-SL5331		WPM-SL331		WPM-SL CUSTOMIZED
Power supply	AC 220V 50/60HZ
Screwdriver torque	1.0-12kgf*cm				To order
Moving speed	600mm/s
Air pressure	0.5-0.7MPa
Position accuracy	±0.02mm/axis
Program capacity	999 groups/1000 points per group
Universal screws	M1.2-M3.0
Work efficiency	1.5s/pcs
Percent of pass	≥99.5%
Stroke	X	500mm	X	300mm	To order
	Y1/Y2	300mm	Y	300mm
	Z	100mm	Z	100mm
Weight	70kg		65kg		To order
Size	530600800mm				To order
Work environment	Temperature: 5-40℃ Humidity: 20-90%
