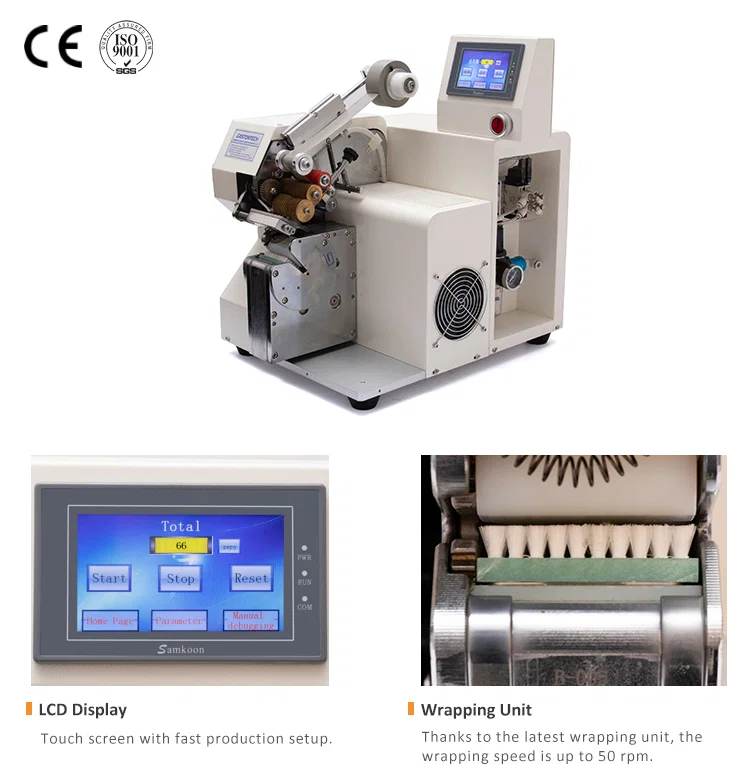

Wire Harness Taping Machine WPM-2-40
Wire Harness Taping Machine WPM-2-40 Thumb

Wire Harness Taping Machine WPM-2-40

  • Model No: WPM-2-40

  • Tape Wrapping Machine, Wire Taping Machine, and Wire Harness Taping Machine are all available for your needs.
    Wire diameter: 1.5mm - 10mm
    Air pressure: 3-5P
    Power supply: 220V/110V/50HZ/60HZ
    Tape width: 15-50mm (in case of other tape size, please customize tape holder as required)
    Tape type: PVC / lint / acetate tape (no interleaving paper), etc
    Fuse protection: 250V/10A
    Control voltage: 24V DC,68V DC
    N.W: 54kg
    Dimension: 52*34*51cm
  • Inquiry now

Detailed description


Harness Taping Machine WPM-2-40, Tape Wrapping Machine, Wire Taping Machine, Wire Harness Taping MachineThe WPM-2-40 Harness Taping Machine is a versatile tool that can be used for tape wrapping, wire taping, and wire harness taping.
Product manual:
1. The device is a mature product that is compatible with the use of different types of durable plastic with no release paper Cloth material (such as duct tape, PVC tape, etc.).
2. To maintain smooth, wrinkle-free, to ensure that every lap duct tape is wrapped around the upper half of overlapping coverage.
3. To ensure the semi-automated way around the plug.
4. Can be different forms of winding mode switching: the same set of points are wrapped, spiral-wrapped around different locations straight.
5. To achieve a set number of turns and speed, output display.
6. The blades can be quickly replaced.

Specification:


Tape Wrapping Machine, Wire Taping Machine, Wire Harness Taping MachineTape Wrapping Machine, Wire Taping Machine, Wire Harness Taping Machine


Model

WPM-2-40

Wire diameter

1.5mm - 10mm

Air pressure

 3-5P

Power supply

 220V/110V/50HZ/60HZ

Tape width

 15-50mm (in case of other tape size, please customize tape holder as required)

Tape type

 PVC / lint / acetate tape (no interleaving paper), etc

Fuse protection

250V/10A

Control voltage

24V DC,68V DC

N.W

54kg

Dimension

52*34*51cm
