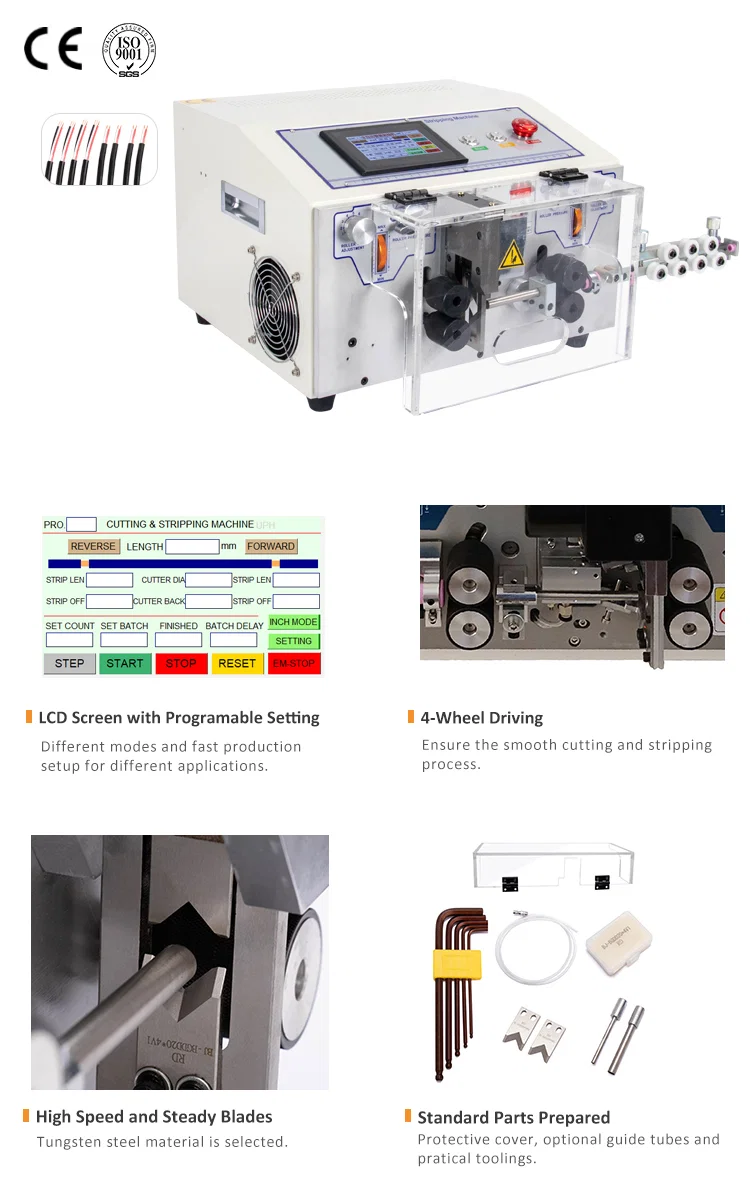

Touch Screen Jacket Cable Wire Cutting and Stripping Machine WPM-HT2S

Name: Touch Screen Jacket Cable Wire Cutting and Stripping Mach...
Brand: Twist Tie Machines & Packaging Solutions
SKU: WPM-HT2S
Availability: InStock
Rating: 5 (1 reviews)

Model No: WPM-HT2S
Touch screen control jacket Cable Wire cutting stripping machine (WPM-HT2S), Wire Stripping Machine, Wire Cutting Machine, Stripping Wire RoundSheathed Cable
Model WPM-HT2S
Type 10mm2 wire cutting and stripping machine
Input Voltage AC220/ 50HZ/ AC110V/60HZ
Power 450W
Display method English/Chinese LCD
Cutting Length 1mm~100000mm
Stripping length Head 0-150, Tail 0-150
Inquiry now

Detailed description

Touch screen control jacket Cable Wire cutting stripping machine (WPM-HT2S), Wire Stripping Machine, Wire Cutting Machine, Stripping Wire Round Sheathed Cable
Multicore Automatic Electrical Cable Wire Cutting Stripping Machine
Product function characteristics
Widely used in the electronics industry, like electrical appliances, motors, lamps, toys, and other various products of wire processing.
Optimal stripped wire cable 0.1-10mm2 PVC/long/silica gel line/Glass fiber, BV line, steel wire, etc.
It can cut and strip the entire coil according to the required length and stripping, which greatly improves efficiency. efficiency.
Stripped double-stranded 2 cores wire stripping machine cut strip machine
Parameters
Electric wire cutting and stripping/peeling machine Jumpered Wire stripping forming machine

Model WPM-HT2S
Type 10mm² wire cutting and stripping machine
Input Voltage AC220/ 50HZ/ AC110V/60HZ
Power 450W
Display method English/Chinese LCD
Cutting Length 1mm~100000mm
Stripping length Head 0-150, Tail 0-150
Cutting Tolerances ± (0.0001xL) mm
Middle stripping cutting section 3
Applicable core area 0.1~10mm²
OD of wire ∅13
Applicable wire PVC, Teflon, glass wire, etc
Tool material hard tungsten steel
Stripping speed 3000-6000pcs/H(L=100mm)
Drive method four-wheel drive

Features
1. Chinese and English switching displays
2. The key operation, convenient and quick, can stay in the middle of 34mm glue,
3. Make both ends semi-stripping and twisting.
4. Easy and fast, ultra-high precision, while compatible with ordinary wire machine function, improves production efficiency.
Touch screen control jacket Cable Wire cutting stripping machine (WPM-HT2S), Wire Stripping Machine, Wire Cutting Machine, Stripping Wire Round Sheathed Cable
