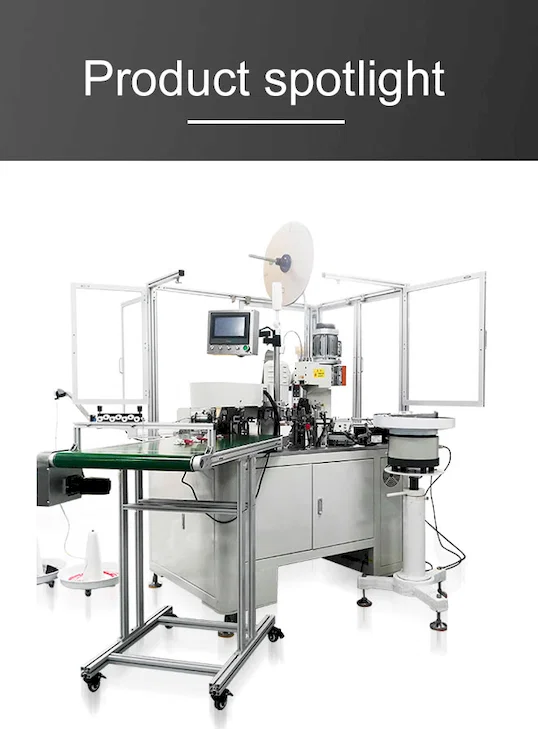

Full Automatic Triple-End Terminal Crimping Machine WPM-189

Name: Full Automatic Triple-End Terminal Crimping Machine WPM-189
Brand: Twist Tie Machines & Packaging Solutions
SKU: WPM-189
Availability: InStock
Rating: 5 (1 reviews)

Model No: WPM-189
Cable Terminal Crimping Machine, Terminal Crimping Machine, Loosen Terminal Crimping Machine
Wire Range: AWG16-AWG28
Cutting Length: 45mm-3200mm (Conveyor available for longer wire)
Cutting Accuracy: Cutting Length*0.2%
Stripping Length: Wire head:10mm tail:14mm
Pressing capacity: 2-3T（special demands available)
Detection device: terminal, wire, insufficient pressure
Power Supply: AC220V/50HZ
Air pressure: 0.5MPA
Dimension: 750*800*1700mm
Weight: 400kg
Output: 3500-4000pcs/H(wire length 1500mm )
Inquiry now

Detailed description

High efficiency, stable performance, super intelligence; Cutting length, stripping length and cutter knife values, half stripping values, terminal crimping speed, all controlled by the touch screen operation, and adjusting the electric knife design, greatly improves the production efficiency. It is the highest efficient machine among the similar type of machines.

Wire Range	AWG16-AWG28
Cutting Length	45mm-3200mm (Conveyor available for longer wire)
Cutting Accuracy	Cutting Length*0.2%
Stripping Length	Wire head:10mm tail:14mm
Pressing capacity	2-3T（special demands available)
Detection device	terminal, wire, insufficient pressure
Power Supply	AC220V/50HZ
Air pressure	0.5MPA
Dimension	7508001700mm
Weight	400kg
Output	3500-4000pcs/H(wire length 1500mm )
