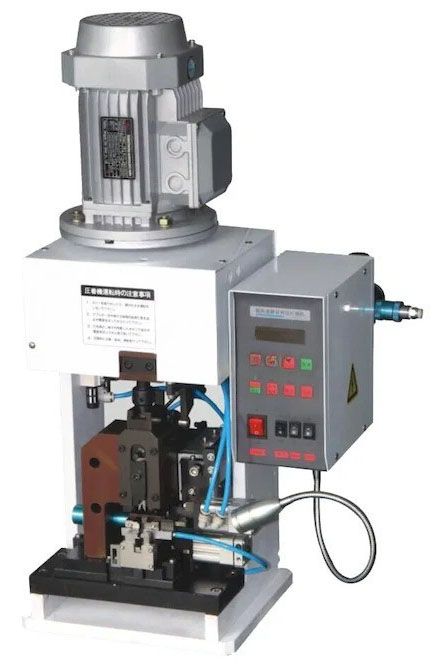

End Feed Wire Stripping and Crimping Terminal Machine WPM-2008A2-E

Name: End Feed Wire Stripping and Crimping Terminal Machine WPM...
Brand: Twist Tie Machines & Packaging Solutions
SKU: WPM-2008A2-E
Availability: InStock
Rating: 5 (1 reviews)

Model No: WPM-2008A2-E
Stripping crimping terminal machine, wire stripping crimping machine, wire crimp machine
Measurement l500mm*w350mm*h730mm
Weight 86kg
Power supply ac220v
Compressed air 0.3～0.4mpa
Pressure 3000kg
Stripping length 1.0-10.0mm
Stripping accuracy 0.05～0.1mm
Crimping accuracy 0.05～0.1mm
Capacity awg#18-36#
Feed way: end feed
Production capacity 3000-3500pcs/h
Inquiry now

Detailed description

stripping crimping terminal machine
End feed wire stripping and crimping terminal machine (WPM-2008A2-E)
1. Wire stripping and Terminal Crimping can be done in a one-time cassette mold holder and skinning system combination to achieve a coherent motion machine.
2. High-precision parts assembly, adjustment method for the tuning screw, precision is more accurate.
3. This machine adopts Japanese SMC pneumatic components, energy saving, and no noise.
4. Electic adopts high quality. It’s saving and steady.

MEASUREMENT L500mm*W350mm*H730mm
WEIGHT 86kg
POWER SUPPLY AC220V
COMPRESSED AIR 0.3～0.4mpa
PRESSURE 3000kg
STRIPPING LENGTH 1.0-10.0mm
Stripping accuracy 0.05～0.1mm
Crimping accuracy 0.05～0.1mm
CAPACITY AWG#18-36#
Feed way: End feed
PRODUCTION CAPACITY 3000-3500pcs/h
