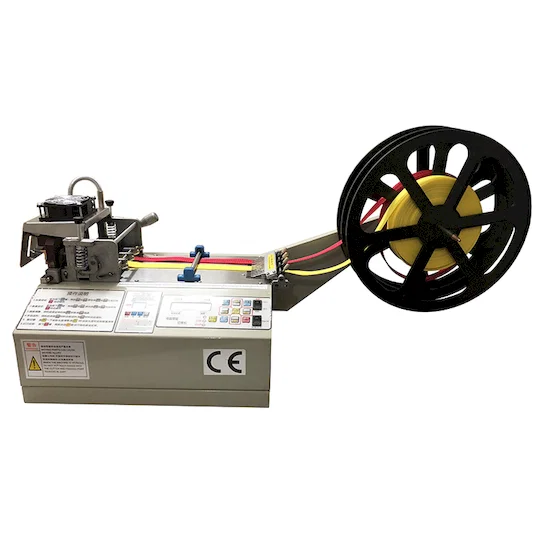

Automatic Reflective BOPP Double-Sided Tape Cutting Machine

Detailed description

Adhesive Tape Cutting Machine, Double Sided Tape Cutting Machine, Bopp Tape Cutting Machine
1. Easy Operation, It can be cut automatically once set up the cutting length and quantity.
2. Self Protection Function, It will stop automatically if the materials run out during the operation.
3.High Speed, it can cut 100-120pcs per minute(50mm length for example)
4. High Accuracy, the cutting length is accurate owing to a stepping motor and imported driver.
5. Reset the Function, clear the cut numbers, and restart counting.
6. Hot & Cold Cutting Knives, can change easily between hot and cold cutting.
7. Compensation, when the cut size is different from the setting size, Increase or decrease this to the standard size.

Apply for:
Widely used to cut kinds of woven belts, nylon buckles, lining, fabric tape without heat seal, plastic zippers,
metal zipper, plastic lace, PVC tube leather, aluminum platinum, PS material, and so on.
We supply kinds of special blades, then you can get different shapes of cutting edge.

Specification:
Available Tape Width:5~100mm
Available Cutting Length:1~999999mm
Tape Cutting Speed:100~120Pcs/Min
Cutting Tolerance: ≤0.5mm
Cutting Type: Hot & Cold knives, Straight cut
Knife Temperature: Max 400 degrees, Adjustable
Power Supply: AC220V/110V 50/60Hz,600W
Available Materials: Fabric, satin, webbing tapes, elastic tapes, and belts,
nylon zipper, leather, Hook & Loop, tubes, etc

Measurement:500*350*350mm
Weight:28kg
Features: Easy Operation
High Speed, High Accuracy
Large Application
Compensation
